GPi CASE 2W

Safe Shutdown
3.5mm audio port
LED power indicator
3.0 IPS screen
Game Boy inspired Raspberry Pi case
Compatible with Raspberry Pi ZERO, ZERO W, ZERO 2W

Instruction Manual BUY (US) BUY (CA)

Design

As a homage to the 8-bit handheld game console, Game Boy, not only does it carry the same looks, it also includes additional features like X/Y buttons
hidden L/R shoulder buttons as well as POWER.


Compare

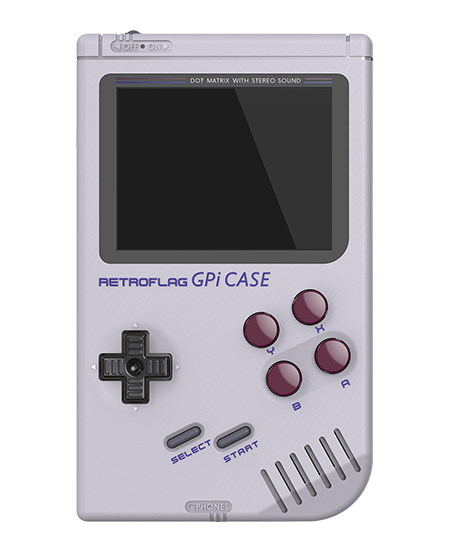

GPi CASE

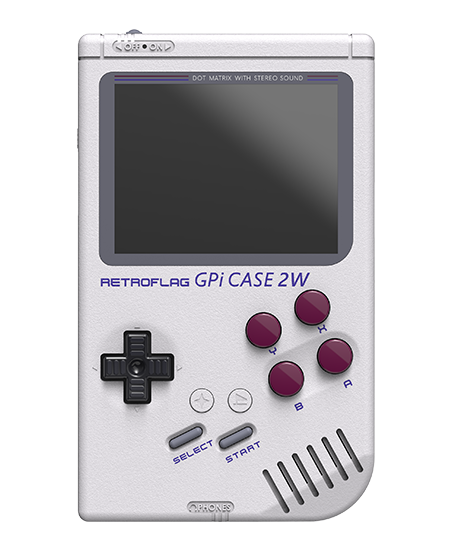

GPi CASE 2W
Screen size / resolution 2.8" TFT LCD / 320*240 3.0" IPS / 640*480
Function button / Turbo, button swap / home
Power cord USB to DC 2.5 x 0.7mm Power Cable USB to DC 2.5 x 0.7mm Power Cable
Battery capacity AA Battery *3 2800mAh Li-on battery
Compatibility Raspberry Pi ZERO
Raspberry Pi ZERO W
Raspberry Pi ZERO
Raspberry Pi ZERO W
Raspberry Pi ZERO 2W

Step 1: Display Patch

Why do we need to install display GPi CASE 2W patch for Retropie and Recalbox?

Because Retropie and Recalbox systems default display output is HDMI. GPi CASE 2W has to transfer display output to GPIO for it to work correctly.



Step 2: Safe Shutdown

GPi CASE 2W can have SAFE SHUTDOWN functions. (Scripts are necessary).

* Safe shutdown scripts: https://github.com/RetroFlag/retroflag-picase

Pogo Pins

Solderless and effortless to install.


Raspberry Pi Zero

Micro SD port


IO conversion board

Cartridge backside


Compatibility

Raspberry Pi ZERO / ZERO W / ZERO 2W

  • 1. POWER switch
  • 2. DC power input
  • 3. Brightness
  • 4. Turbo1
  • 5. 3.5mm headphone jack
  • 6. Speaker
  • 7. Home2
  • 8. Volume
  • 9. 3 inch IPS screen
  •  10. USB port for firmware upgrade
  •  11. R shoulder button
  •  12. Battery pocket
  •  13. L shoulder button

Tech Specs


GPi Case 2W

Case dimensions


  • 134.63 * 81.3 * 31.72mm
  • Weight


  • 230g
  • Compatibility


  • Raspberry Pi ZERO
  • Raspberry Pi ZERO W
  • Raspberry Pi ZERO 2W
  • Screen size


  • 3.0" IPS
  • Battery


  • 2800mAh Li-on battery
  • Includes


  • GPi Case 2W
  • 1 meter power cable
