GPi CASE 2

Safe Shutdown
Add Turbo and Home buttons
LED power indicator
Add power save mode button
Built-in 4000mAh lithium battery
3.0 inch TFT screen (640*480)
Game Boy inspired Raspberry Pi case
Compatible with Raspberry Pi Compute Module 4
GPi CASE 2 Dock supports HDMI output to TV.
* Don't recommend CM4 eMMC, can't access SD card.

BUY GPi Case 2 BUY GPi Case 2+DOCK

Instruction Manual

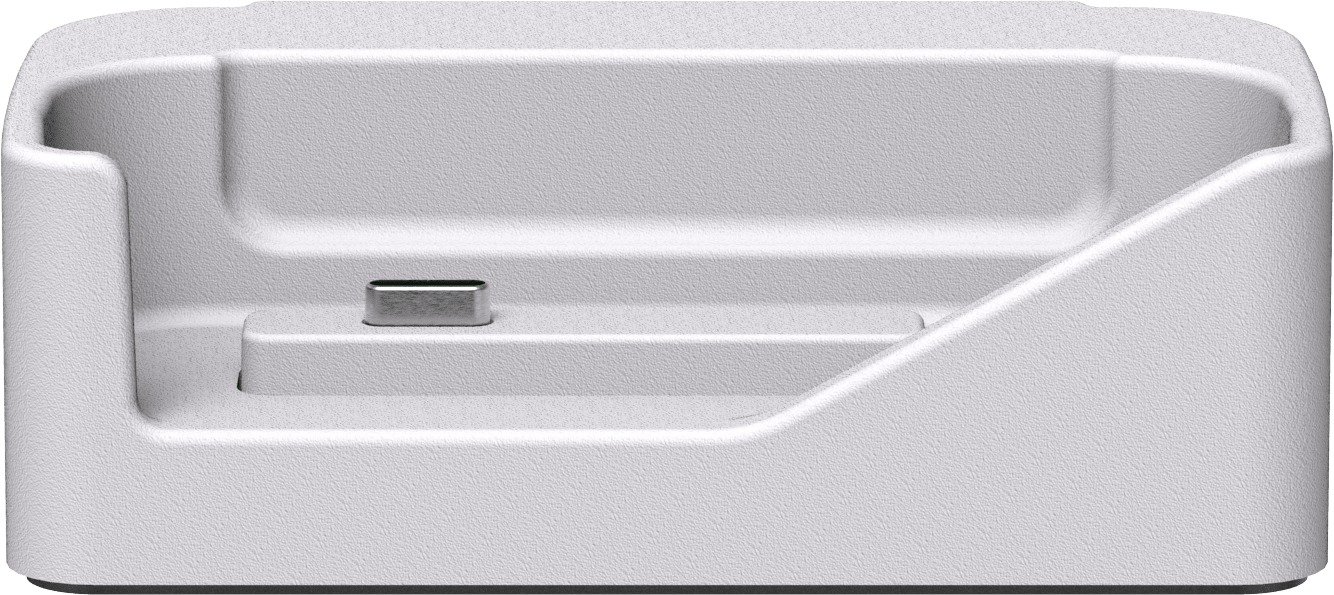

GPi CASE 2 Dock

Play anytime, anywhere. You can plug your GPi CASE 2 into the Dock for charging. Support HDMI output to the TV or projector for big-screen gaming. GPi CASE 2 Dock offers 2 USB ports for USB Wired controllers, keyboard, and mouse, etc.

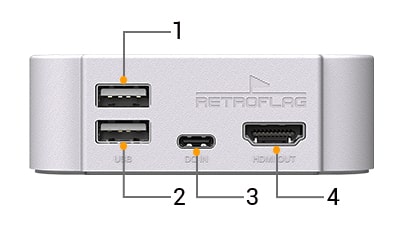

  • 1. USB 2.0
  • 2. USB 2.0
  • 3. USB-C power input
  • 4. HDMI output(720p or 1080p)

OS support

Recalbox system is recommended.
No need to install any display patch and safe shutdown scripts.
Download: https://www.recalbox.com

Retropie system, display patch and safe shutdown scripts are necessary.

Step 1: Display Patch

Why do we need to install display GPi CASE 2 patch for Retropie?
Because Retropie systems default display output is HDMI. GPi CASE 2 has to transfer display output to GPIO for it to work correctly.


Step 2: Safe Shutdown

GPi CASE 2 can have SAFE SHUTDOWN functions. (Scripts are necessary).
* Safe shutdown scripts : https://github.com/RetroFlag/GPiCase2-Script

Design

As a homage to the 8-bit handheld game console, Game Boy, not only does it carry the same looks, it also includes additional features like X/Y buttons hidden L/R shoulder buttons as well as POWER.

No Tools Required

The whole process can be done without any tools.

Insert Compute Module 4

Match four alignment holes

Press the position shown in the figure with two fingers

Press the position shown in the figure with two fingers

Compatibility

The following versions of Compute Module 4 are supported, recommend CM4 Lite with WiFi.

CM4 Lite without WiFi

CM4 Lite with WiFi

CM4 eMMC without WiFi

CM4 eMMC with WiFi

  • 1. POWER switch
  • 2. Screen backlight wheel
  • 3. Turbo1
  • 4. USB-C power port 2
  • 5. 3.5mm headphone jack
  • 6. Home3
  • 7. Volume
  • 8. 3.0" TFT Resolution：640*480
  • 9. Power save mode button4
  •  1. Micro-USB (upgrade)5
  •  2. TF card slot
  •  3. R button
  •  4. L button
  •  5. Compute Module 4 motherboard slot

Tech Specs

GPI CASE 2

Case dimensions

  • 81.3*31.72*134.63mm (without Dock)
  • 87.4*49.95*29.5 mm (Dock)

    • Weight

  • 224g (without Dock)
  • 103g (Dock)

    • Compatibility

  • CM4 Lite without WiFi
  • CM4 Lite with WiFi
  • CM4 eMMC without WiFi
  • CM4 eMMC with WiFi

    • Screen size

  • 3.0"

  • Battery

  • 4000 mAh

  • Includes

  • GPi CASE 2
  • Instruction manual
